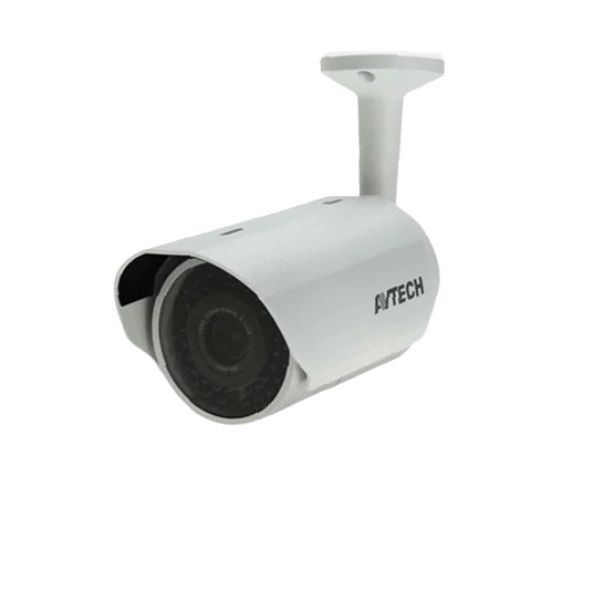

Avtech AVS144 HD SDI-TVI CCTV Camera

Product Summary

The Avtech AVS144 HD SDI–TVI CC Camera is a high-performance surveillance solution designed for both indoor and outdoor applications. This camera supports HD-SDI and TVI video formats, providing versatility in connectivity and compatibility with various recording devices. Its 1/2.9" CMOS sensor delivers crisp and clear images at a resolution of 1080p, ensuring detailed monitoring in real-time. The AVS144 features advanced IR night vision capabilities, making it ideal for low-light environments. Built with durable materials, this camera is weatherproof, ensuring reliable performance under various environmental conditions.

Key Features

High Definition Resolution: 1080p (1920 x 1080) for superior image quality.
Multi-Format Support: Compatible with HD-SDI and TVI systems, allowing for flexible installation options.
Night Vision: Equipped with infrared LEDs for clear visibility in darkness, with an IR range of up to 30 meters.
Durable Design: IP66 weatherproof rating, suitable for outdoor use.
Wide Angle Lens: Provides a broad field of view for extensive coverage.
User-Friendly Setup: Easy installation with adjustable mounting options.

Specifications

Feature	Specification
Camera Type	HD SDI / TVI CCD Camera
Sensor Type	1/2.9" CMOS Sensor
Effective Pixels	1920 x 1080 (1080p)
Video Output	HD-SDI, TVI
Minimum Illumination	0.01 Lux (IR On)
IR LED Range	Up to 30 meters
Field of View	100 degrees
Video Compression	H.264
Power Supply	DC 12V / AC 24V
Operating Temperature	-10°C to +50°C
Dimensions	250 mm x 100 mm x 90 mm
Weight	Approximately 1.5 kg
Mounting Type	Wall or Ceiling Mountable
Warranty	1 year

Conclusion

The Avtech AVS144 HD SDI–TVI CC Camera combines advanced imaging technology with robust construction, making it an excellent choice for those seeking reliable surveillance solutions. Its high-definition capabilities and versatile installation options cater to various security needs, ensuring peace of mind in any environment.
